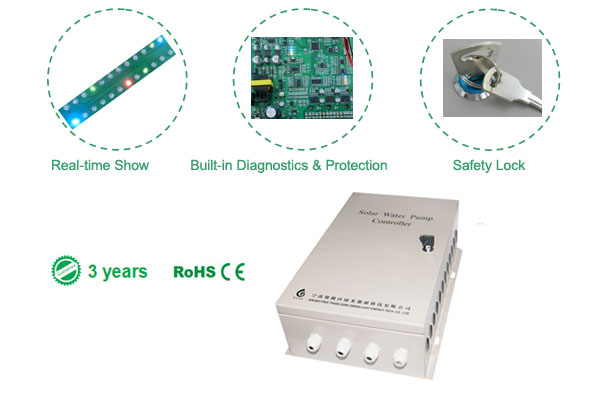

• Solar Water Pump Controller
•

Prev: Solar Power Conditioning Unit    Next: Solar Water Pump Inverter

Detailed Product Description

Solar water pump controller is used for DC solar water pump systems. It can take a good care of the solar panel and water pump and make the whole system work smoothly.

Features:
Rugged Enclosure: Robust IP 65, NEMA 3drive enclosure minimizes impact of wildlife, insects, dust, and weather.
Real-time Show: Series of LED indicators show system running status.
MPPT Control: Maximum power point tracking algorithm greatly improves system efficiency.
Soft Start: Soft start technology makes pump working smoothly and extends system service life.
Comprehensive Fault Management: overvoltage / under voltage alarm, over current alarm, overload alarm, automatic over power derating, over-temperature alarm, internal system failure management.
User Friendly: Simple installation and no required maintenance

PRODUCT MODELS:

Specification	Model
	GLPC750-48	GLPC1500-110	GLPC3000-220
Rated Power	0.75KW	1.5KW	3KW
Max Power	1KW	2KW	4.5KW
Rated Voltage	48V	110V	220V
Panel Voltage Range	30V~100V	80V~200V	160V~400V
MPPT Range	40V~65V	100V~150V	200V~300V
Max Speed	3500(rpm)
Working Temperature	-20℃~70℃
Resistance of Water Level Sensor	0Ω~500Ω
Motor Type	Brushless DC Motor
Pic

Download:Solar Water Pump Controller PDF File
