• Solar Water Pump Inverter
•

Prev: Solar Water Pump Controller    Next: Power Monitoring Unit (PMU)

Detailed Product Description

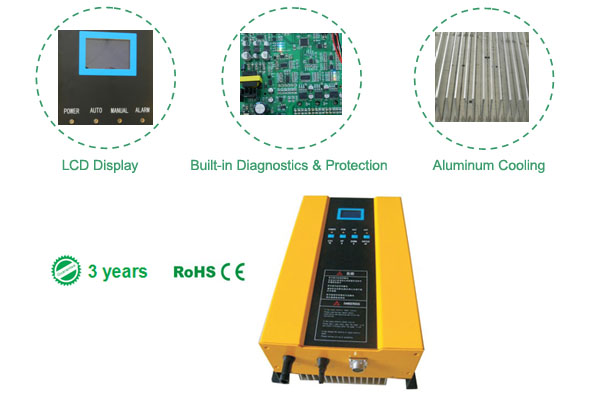

Solar water pump inverter is used for AC solar water pump systems. It transforms direct current from the panel into across current to make the pump work. It can take a good care of the solar panel and water pump and make the whole system work smoothly.

Features:
MPPT Control: Maximum power point tracking algorithm greatly improves system efficiency.
Cold Rolling Steel Shell: Unique design of cold rolling steel shell with good cooling and shielding.
Programmable LCD: Beautiful LCD display and programmable parameter setting, makes installation much easier.
Soft Start: Soft start technology makes pump working smoothly and extends system service life.
Perfect Protection: Digital control, full automatic running, complete protective functions (over load, over voltage, under voltage, over heat, reverse polarity, thunder, over flow and dry running).
IPM Unit: The main circuit adopts intelligent power module(IPM),with high reliability and high efficiency 98%.

PRODUCT MODELS:

Model	Specification					PIC
	Rated power	DC min/max input voltage	MPPT voltage	Output voltage	Output frequency
GLPI3700H	3.7kw	450/750v	500-600v	3PH 380v	0-50/60Hz
GLPI5500H	5.5kw
GLPI7500H	7.5kw
GLPI11KH	11kw
GLPI15KH	15kw
GLPI18KH	18kw
GLPI22KH	22kw
GLPI30KH	30kw
GLPI37KH	37kw
GLPI45KH	45kw
GLPI55KH	55kw

Download:Solar Water Pump Inverter PDF File
